Your Specifications

Please fill in your particular specifications on the form below and hit the "submit" button. In addition, with internet technology being what it is (server down, etc.), you may also want to print this page before submitting and fax along with the coversheet provided in order to guarantee our receipt of your specifications. We will contact you as soon as possible to discuss your request!

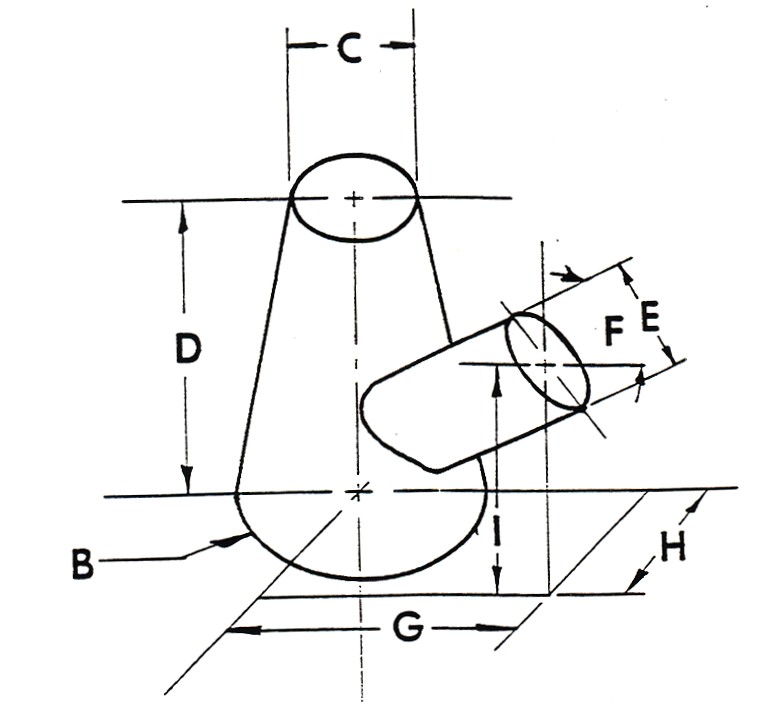

Cylinder to Cone Intersection

Cylinder to Cone Intersection
Cone Intersecting Cylinder
SPECIFICATIONS LEGEND SIZE
Enter number of calculated points
Enter large diameter of cone B
Small diameter of cone C
Height of conic section D
Diameter of branch tube E
Enter tube angle off X-axis F
X-offset from cone CL to branch CL G
Y-offset from cone CL to branch CL H
Height from base to tube center I



Number of units desired:

Name:

Company:

Telephone:

Email:

Comments:

            Back to List of Patterns Available
