Your Specifications

Please fill in your particular specifications on the form below and hit the "submit" button. In addition, with internet technology being what it is (server down, etc.), you may also want to print this page before submitting and fax along with the coversheet provided in order to guarantee our receipt of your specifications. We will contact you as soon as possible to discuss your request!

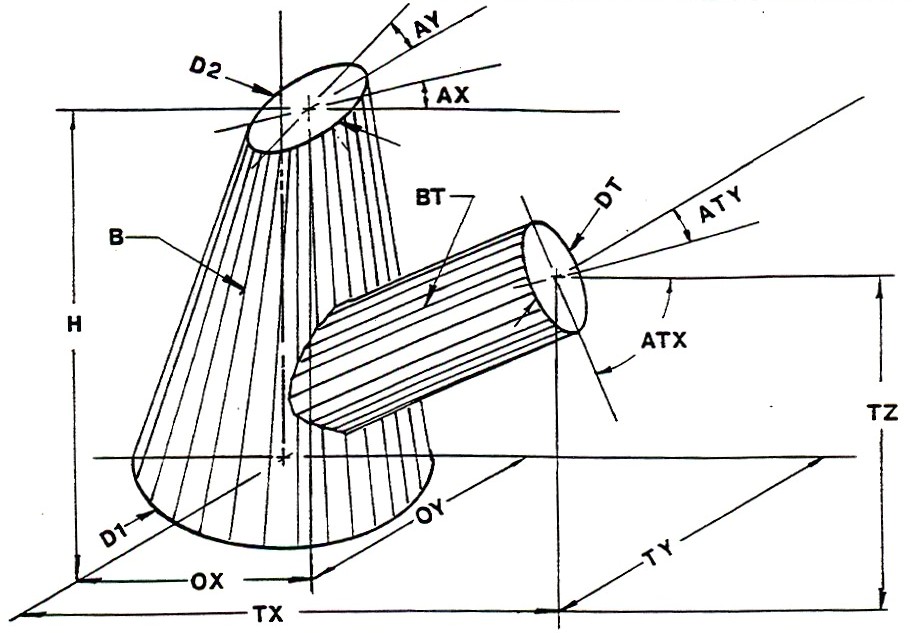

Cylinder to Eccentric Round to Round

Cylinder to Eccentric Round to Round
SPECIFICATIONS LEGEND SIZE
Enter diameter 1 D1
Enter diameter 2 D2
Enter offset in X OX
Enter offset in Y OY
Enter height H
Enter angle off X-axis AX
Enter angle off Y-axis AY
Enter diameter of tube DT
Enter tube location in X TX
Enter tube location in Y TY
Enter tube location in Z TZ
Enter tube angle off X ATX
Enter tube angle off Y ATY
Rolled (1) or formed (2)
Enter number of points, round B1
Enter number of points, tube B2



Number of units desired:

Name:

Company:

Telephone:

Email:

Comments:

            Back to List of Patterns Available
